1. Getting Ready
1.1 AiHand Introduction
1.1.1 Product Introduction

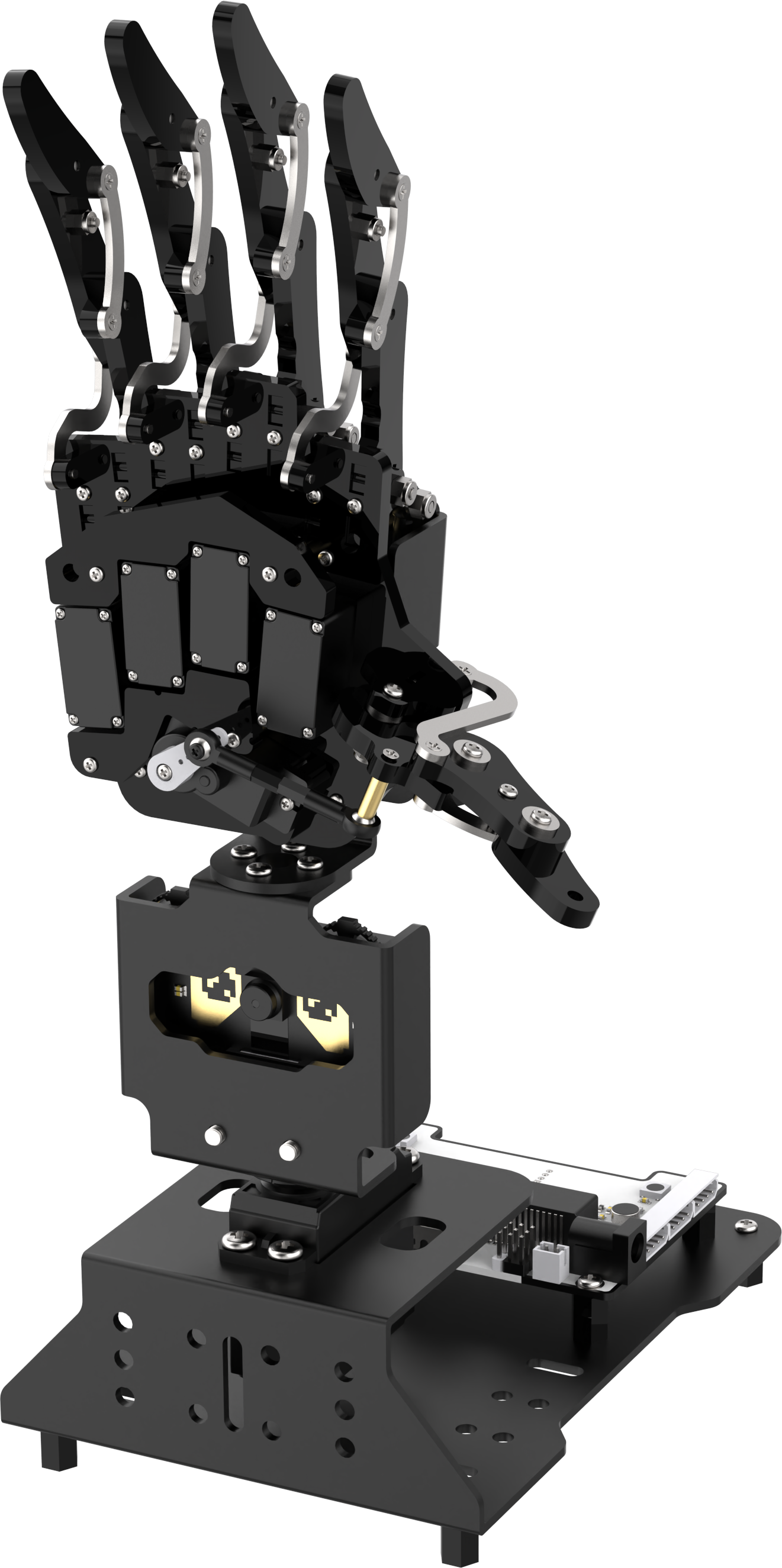

AiHand is a programmable robotic hand powered by micro:bit. With 6 joints and the micro:bit V2 as its core controller, it incorporates a variety of sensor modules, making it an excellent tool for learning programming and electronics.
The robotic hand features five built-in anti-blocking servos that protect the robot during operation and significantly extend its lifespan. It also comes with a 180-degree pan-tilt, enhancing its flexibility.
Additionally, it expands its capabilities with multiple onboard sensors and electronic modules, including an ultrasonic sensor and a WonderCam vision module. This enables more interesting and creative games.
1.2 Packing List

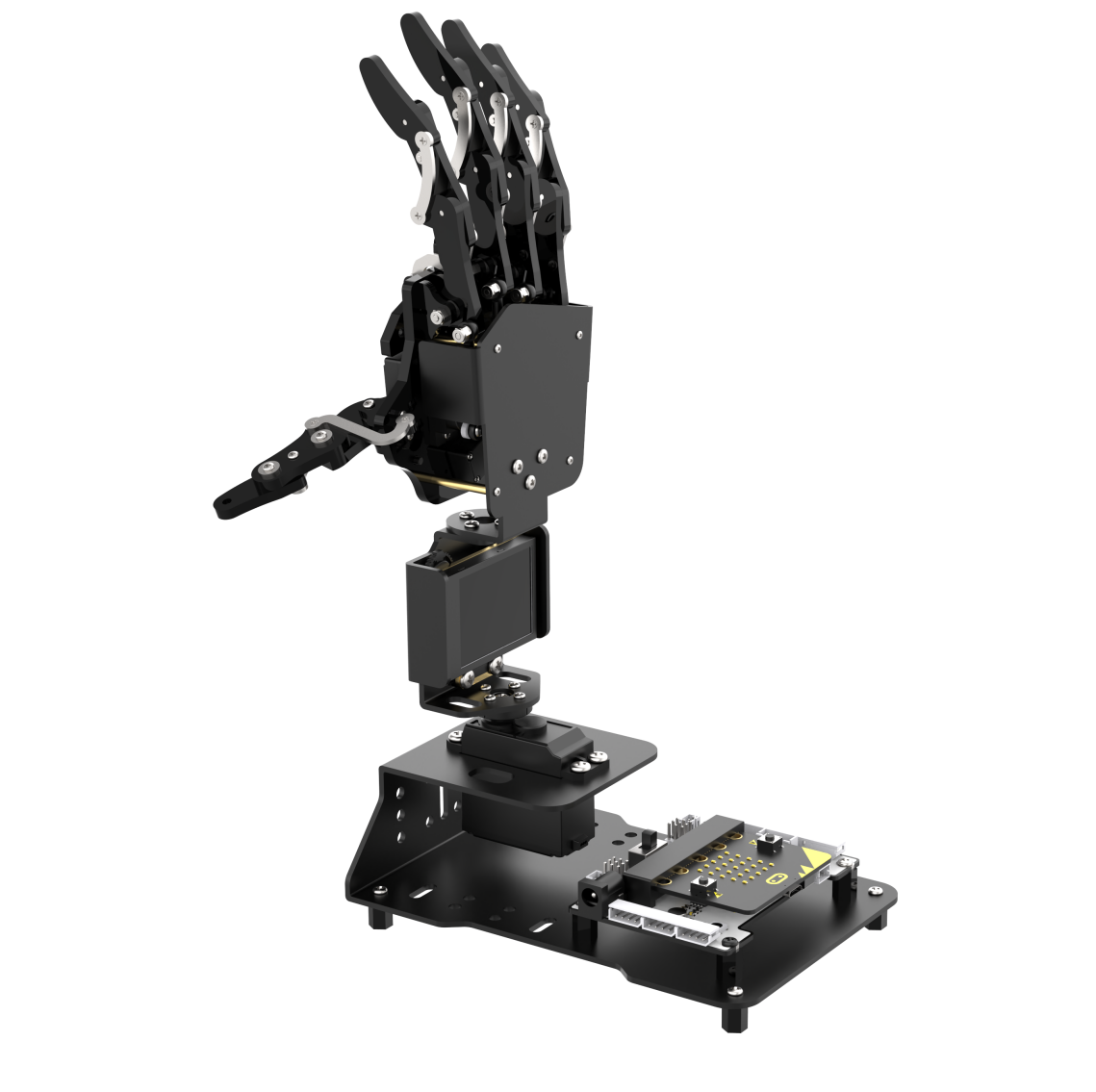

AiHand Robotic Hand
| Accessory | Picture | Quantity |
|---|---|---|
| AiHand | |
1 |
| micro:bit (optional) |  |
1 |

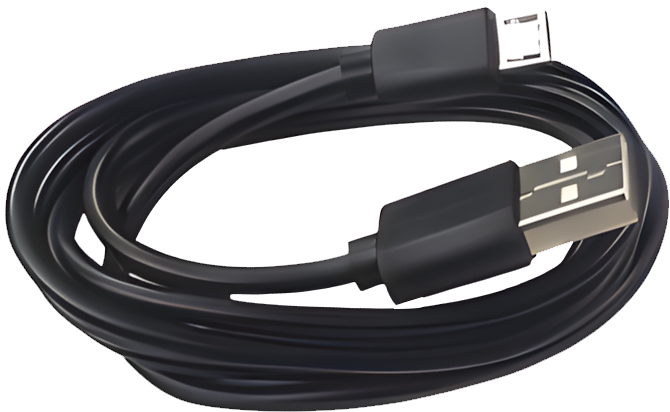

| USB data cable |  |
1 |

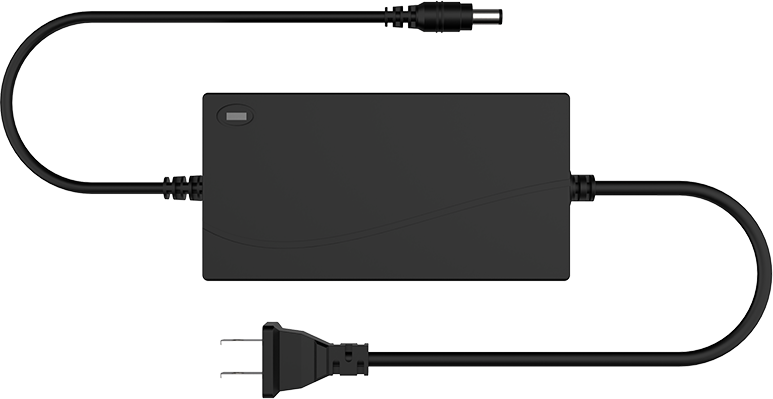

| 7.4V 3A power adapter (DC35) |  |
1 |

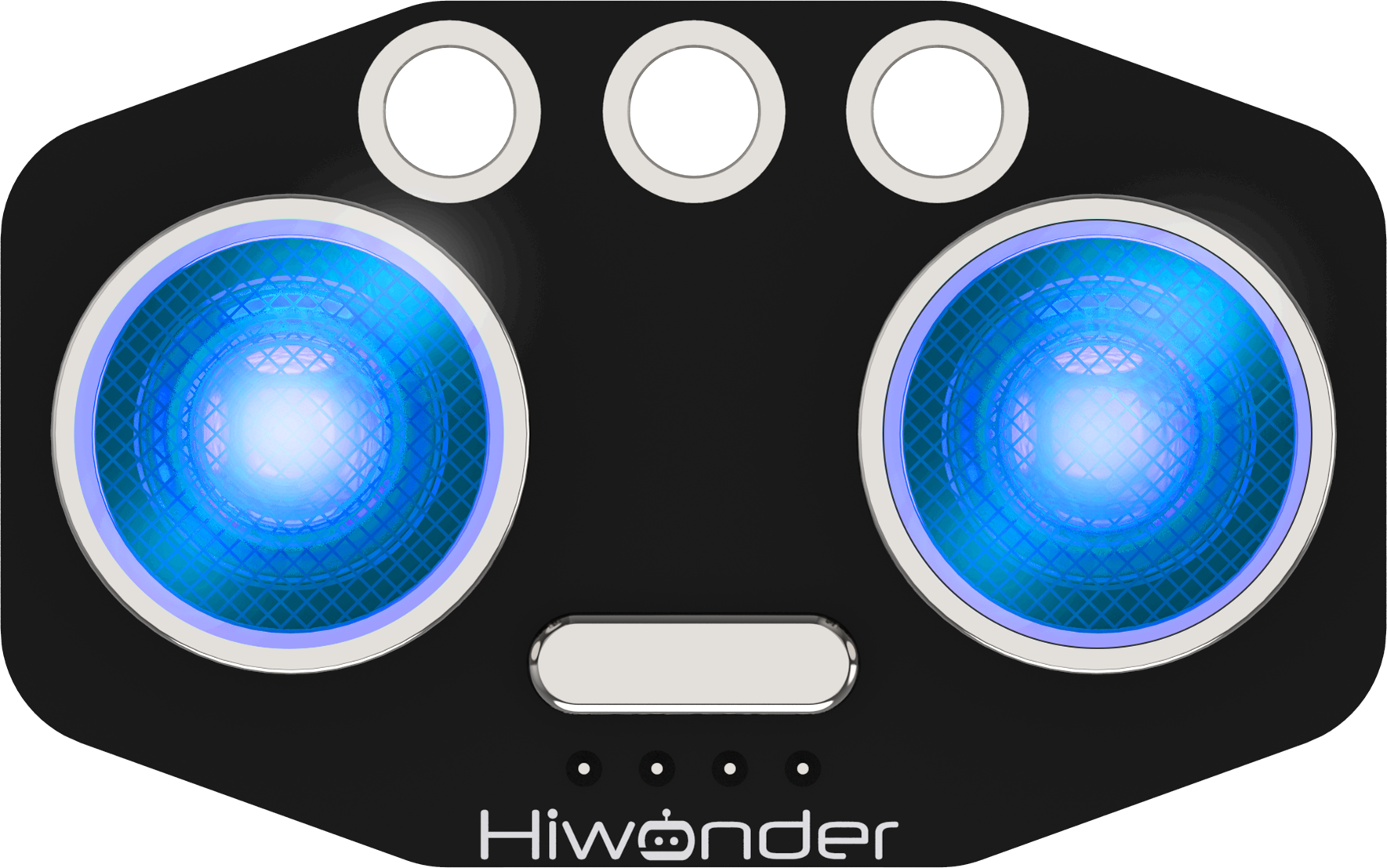

| Glowing ultrasonic sensor |  |
1 |
| Waste cards |  |
1 |
| Number cards |  |
1 |
| Traffic signs |  |
1 |

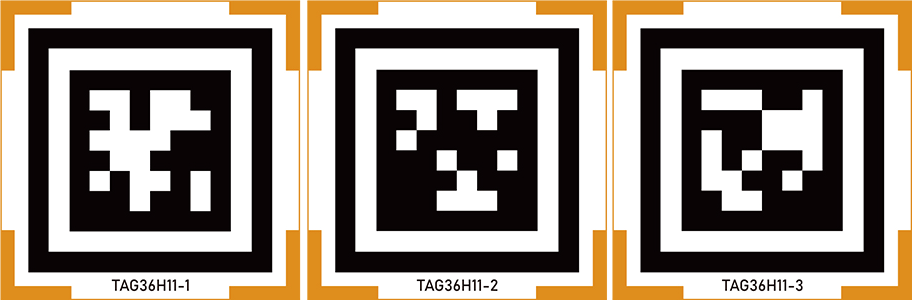

| Tags |  |
1 |

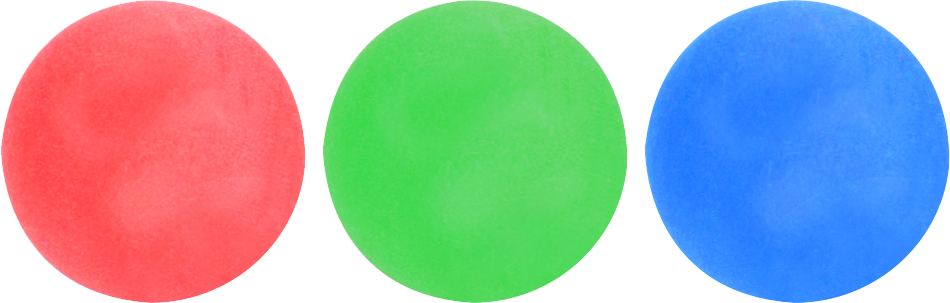

| Red+green+blue balls (40mm) |  |
1 |
| 4PIN sensor wire (200mm) |
 |
|
| Accessory bag |  |
1 |
1.3 Install & Power Instruction

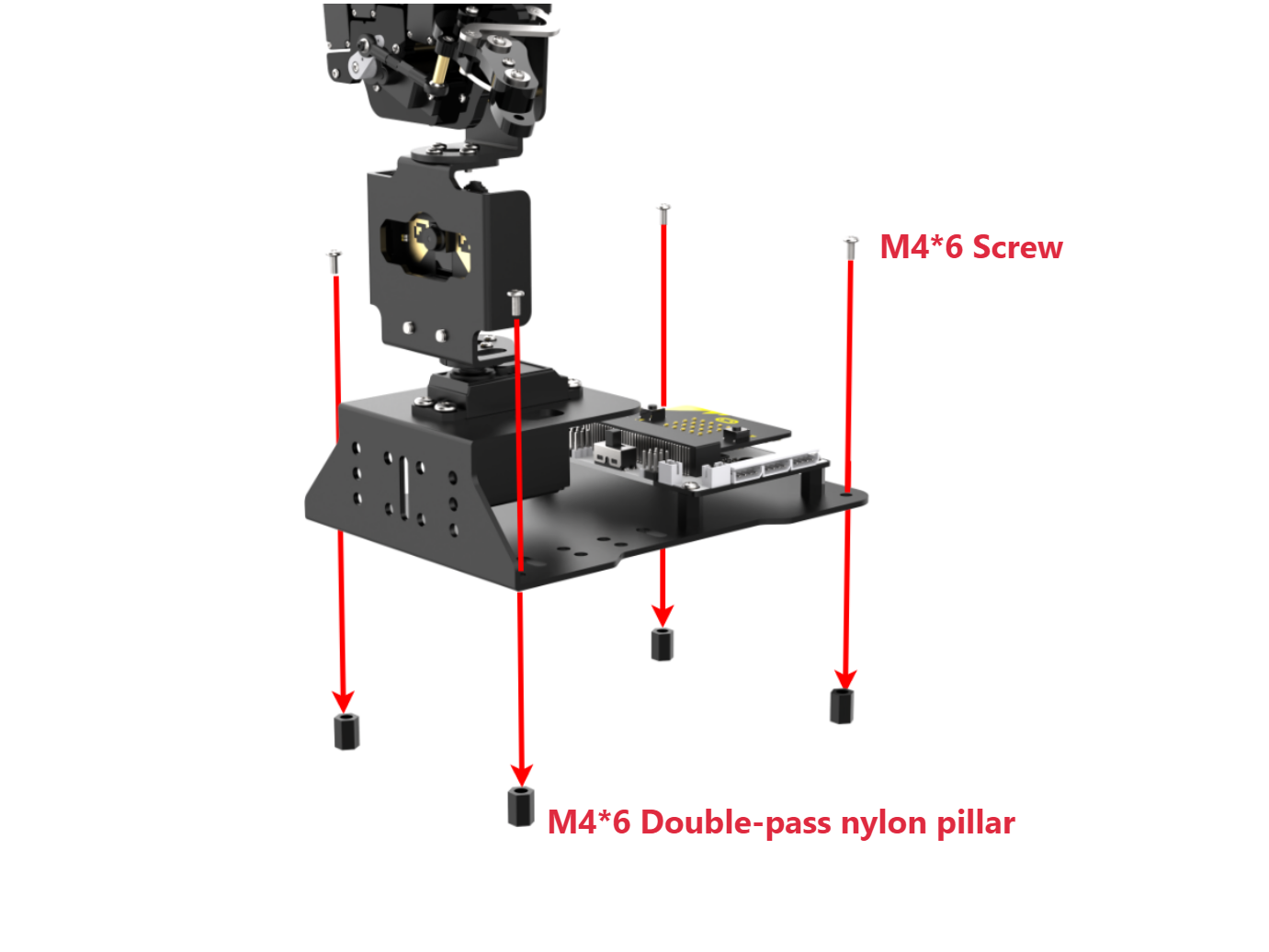

1.3.1 Install Baseboard Nylon Pillar
The installation method is as below:
Required accessory
 |
 |
|---|---|

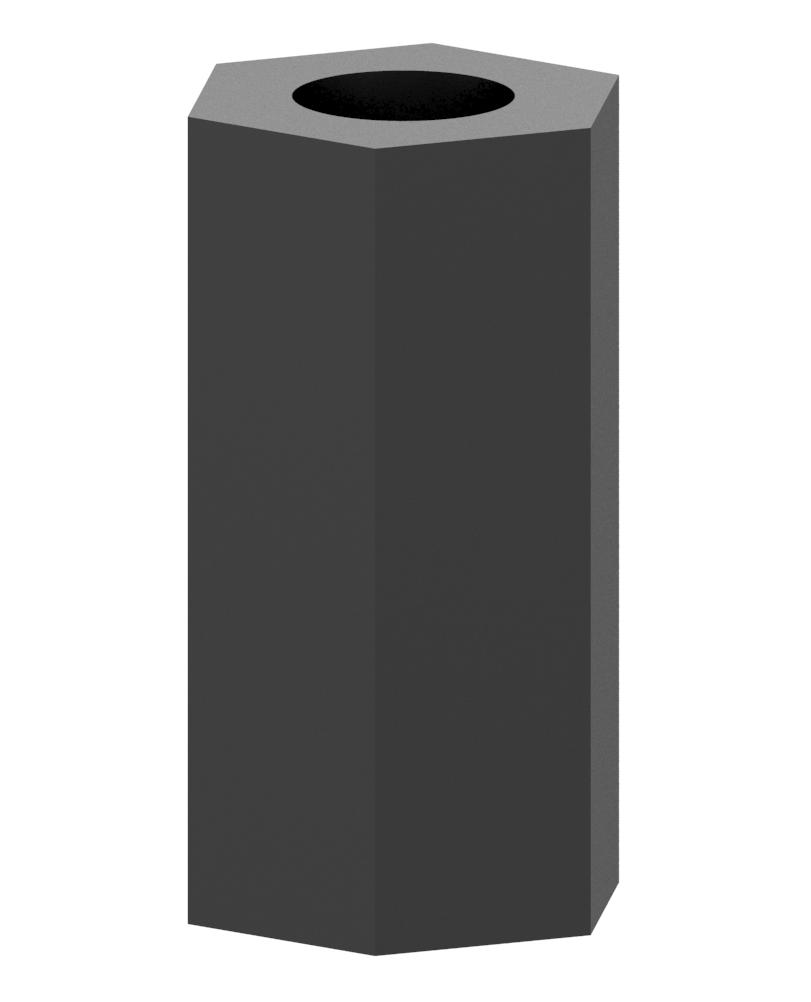

| M4*6 Double-pass nylon pillar x4 | M4*6 Screw x4 |
Installation method

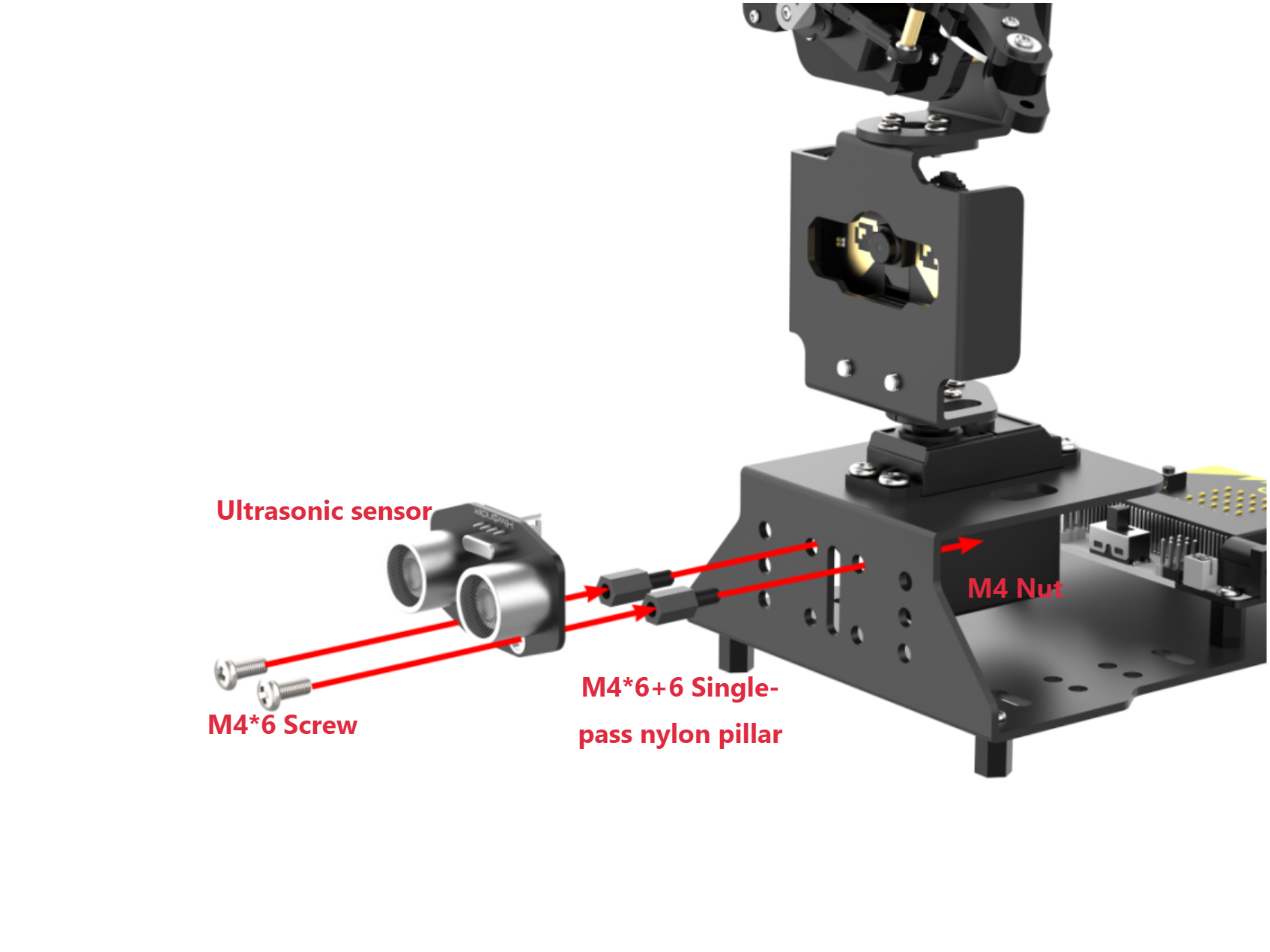

1.3.2 Install Ultrasonic Sensor
The installation method is as below:
Required accessory
 |
 |
 |
|
|---|---|---|---|

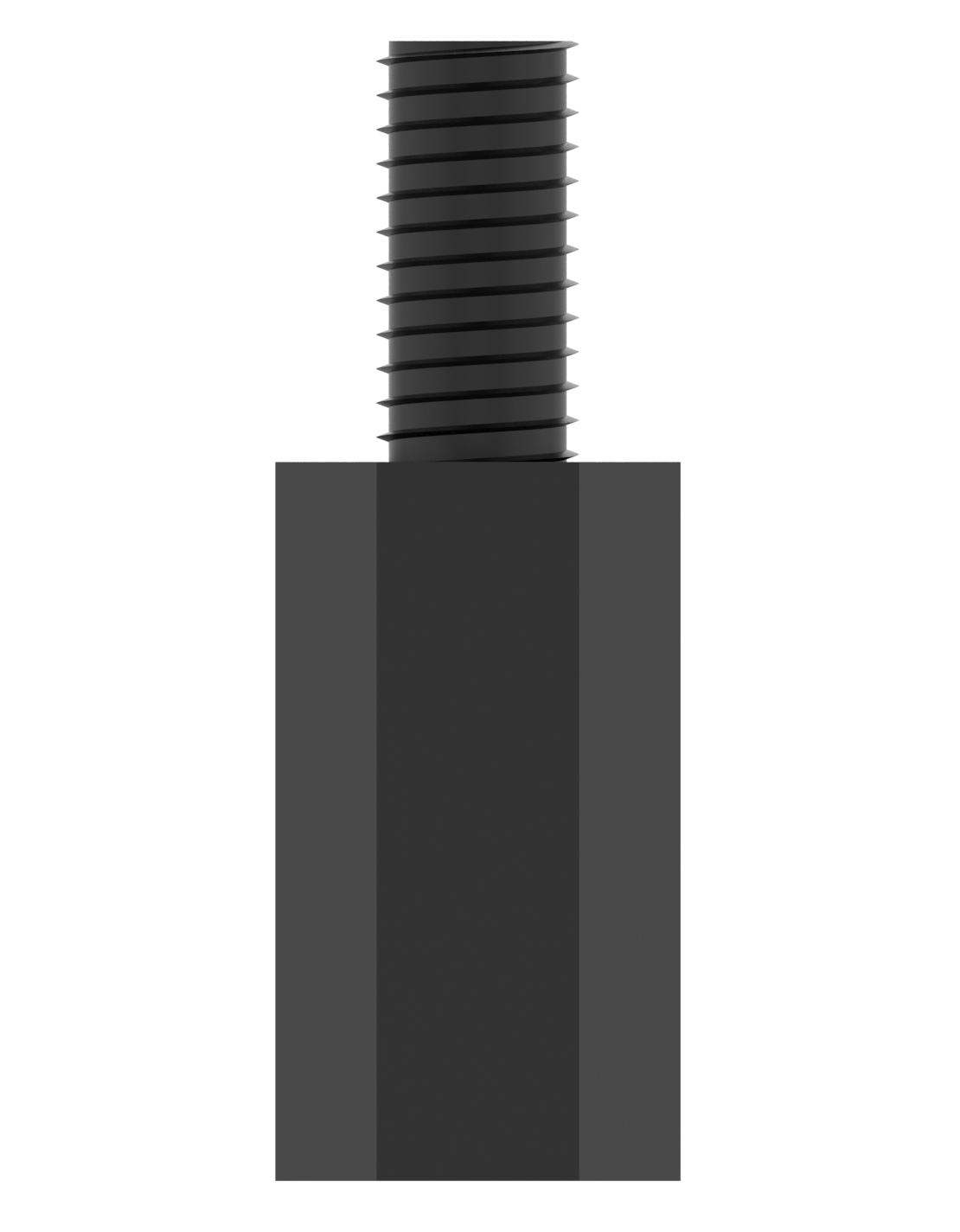

| Ultrasonic sensor x1 | M4*6+6 Single-pass nylon pillar x2 | M4 Nut x2 | M4*6 Screw x2 |
Installation method
1.3.3 Power Supply Instruction

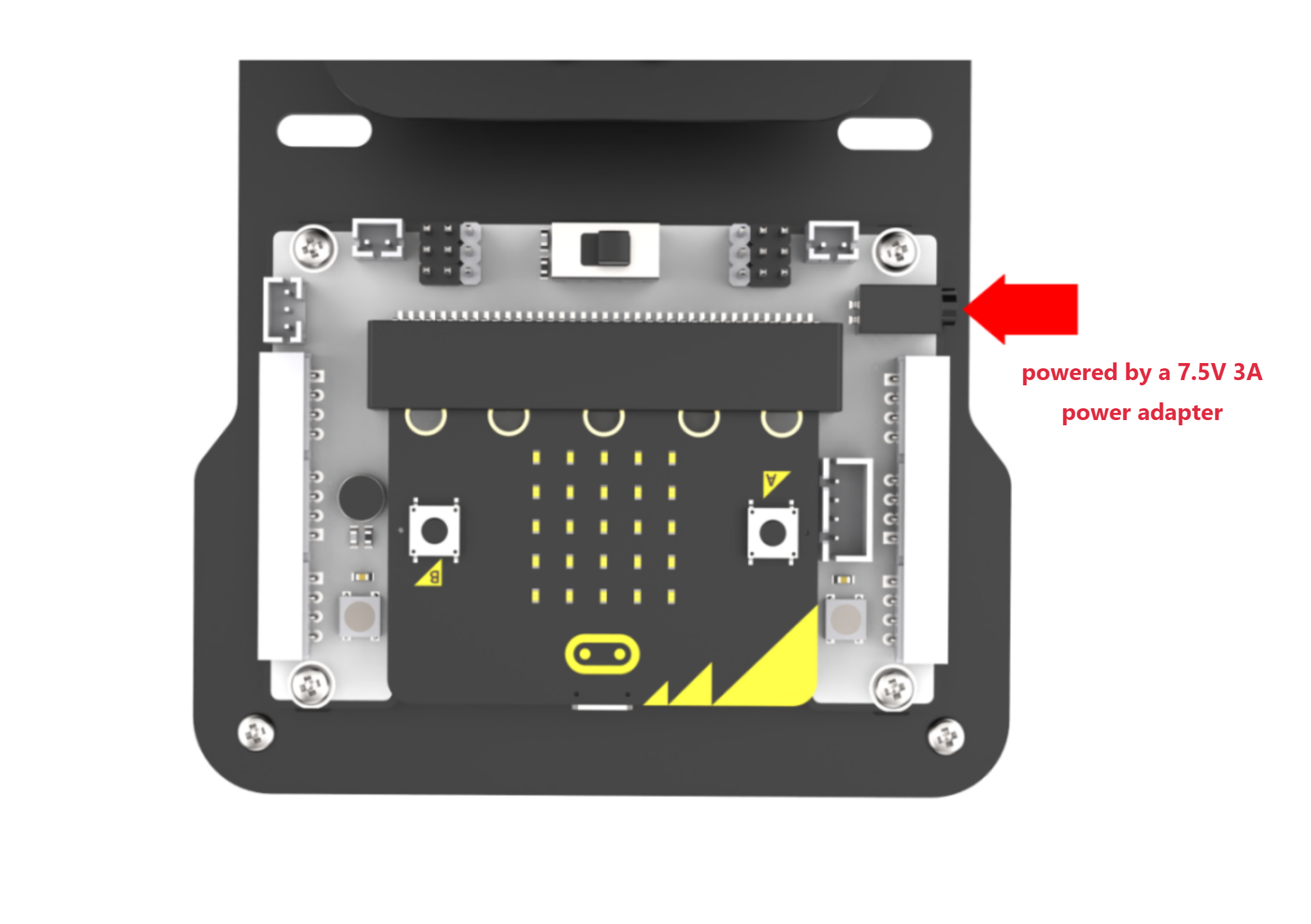

AiHand is powered by a 7.5V 3A power adapter as shown below:
